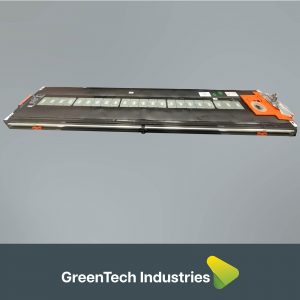

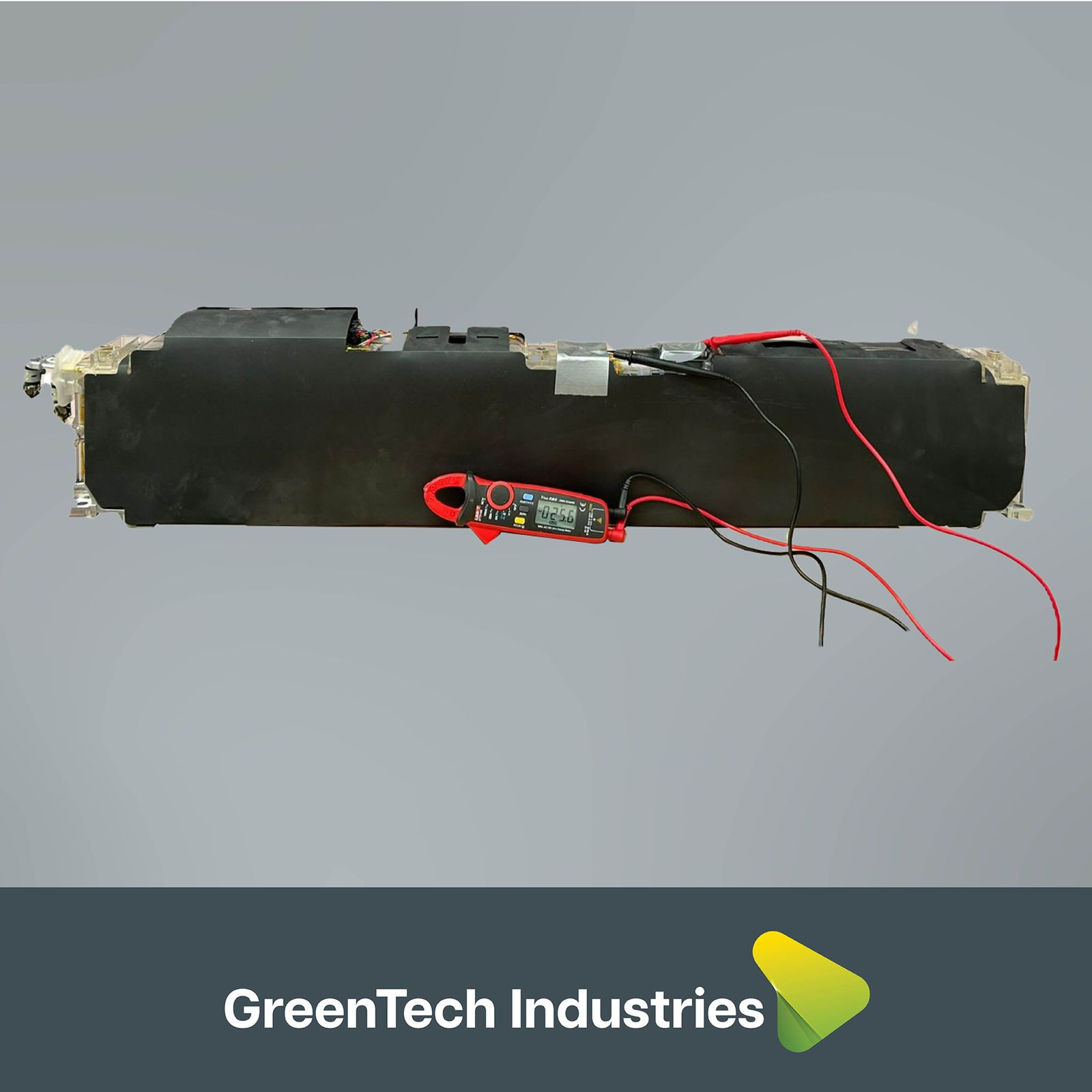

Tesla Model S 5.3KWh

6S74P 5.3kWh Tesla module (manufactured 2015 or newer)

A Model S module consists of 3400mAh cells arranged in a 74p6s configuration. It is rated at 500 amps, 750 amps peak. Has an integrated liquid cooling/heating system, but can also be air cooled in light duty cycle applications. Has an integrated connector with cell level connectivity for BMS systems and two integrated thermistors. The module contains 444 cells, and each cell is independently safety fused on both terminals.

Capacity: 232Ah, 5.3kWh
Height: 3.1 Inches (8 cm)
Width: 11.9 Inches (31.5 cm)
Length: 26.2 Inches (69cm)
Weight: 55 Pounds (26kg)
Bolt Size: M8
Voltage nominal: 3.8V/Cell, 22.8V/Module
Charge voltage cut-off: 4.2V/Cell, 25.2V/Module
Discharging cut-off: 3.3V/Cell, 19.8/Module
Maximum Discharging Current (10 sec.):750 Amps
Warranty Period: One year
